Hettich Sensys 110° hinge with integrated silent system, Inset

Name: Hettich Sensys 110° hinge with integrated silent system, Inset
Brand: FineLine
SKU: shopify_IE_9898921132373_50658198552917
Price: 6.00 EUR
Availability: InStock

€6,00

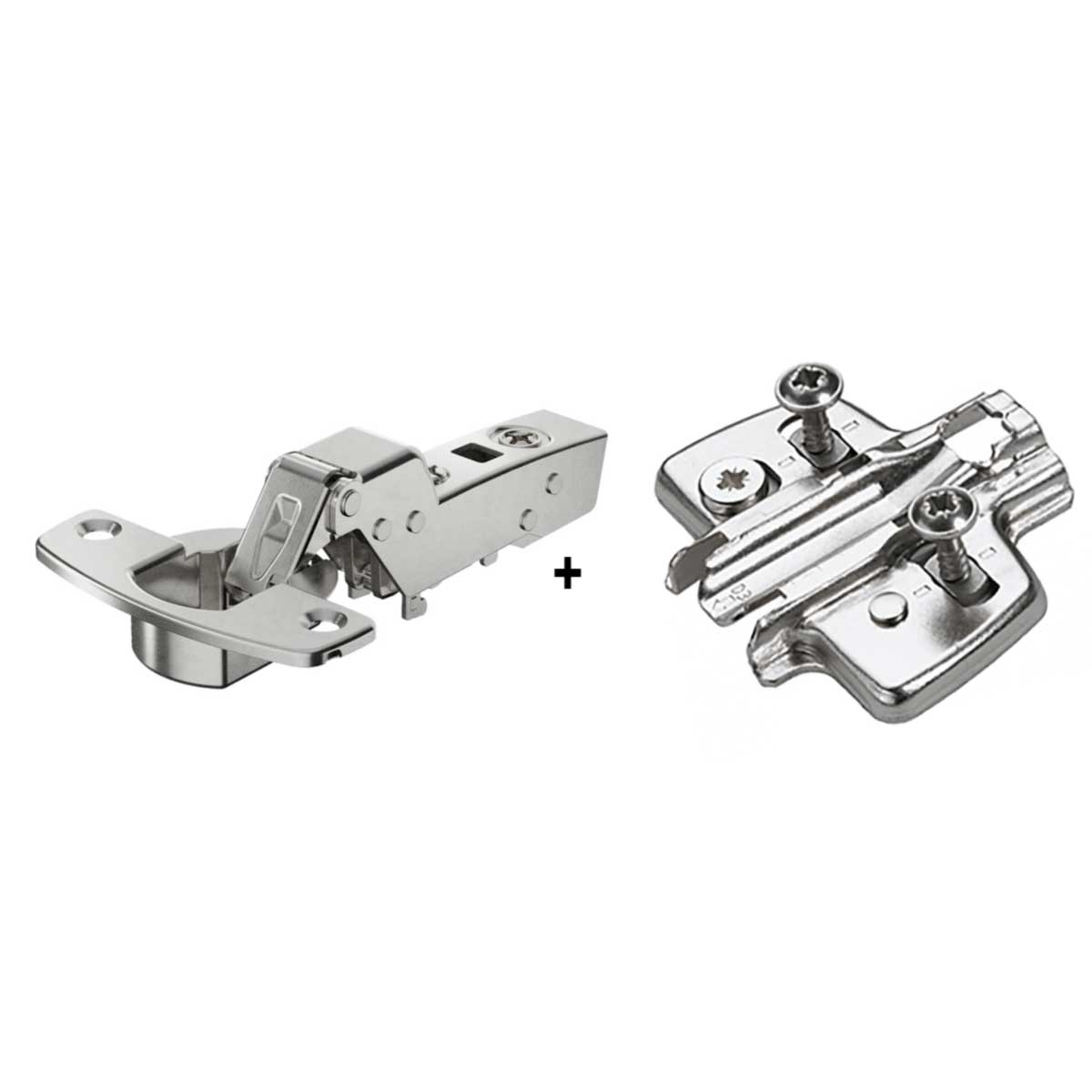

Mounting plate

none cross linear

0 LEFT IN STOCK

Products will be delivered between 1 and 3.

Product description

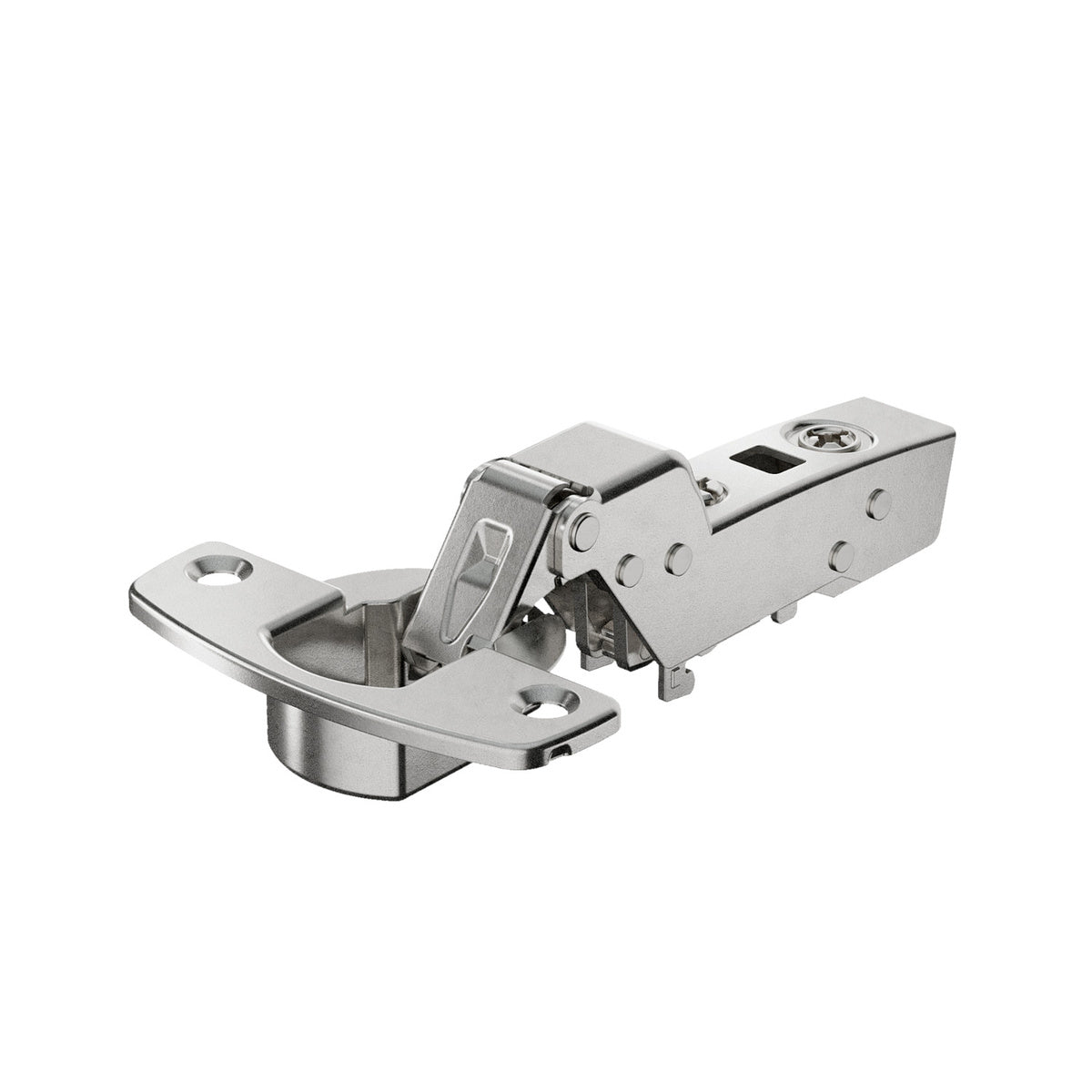

Hettich Sensys 110° hinge with integrated silent system and soft close feature

Design	90° construction
Door type	Standard door / wooden door Wood framed door (profile width from 50 mm) Aluminium framed door (profile width from 50 mm)
User friendly features	with integrated silent system
Door mounting option	Inset
Opening angle	110 °
Min. door thickness	15 mm
Max. door thickness	24 mm
Cup version	TH 52
Base	12.5 mm
Cup diameter	35 mm
Cup depth	12.8 mm

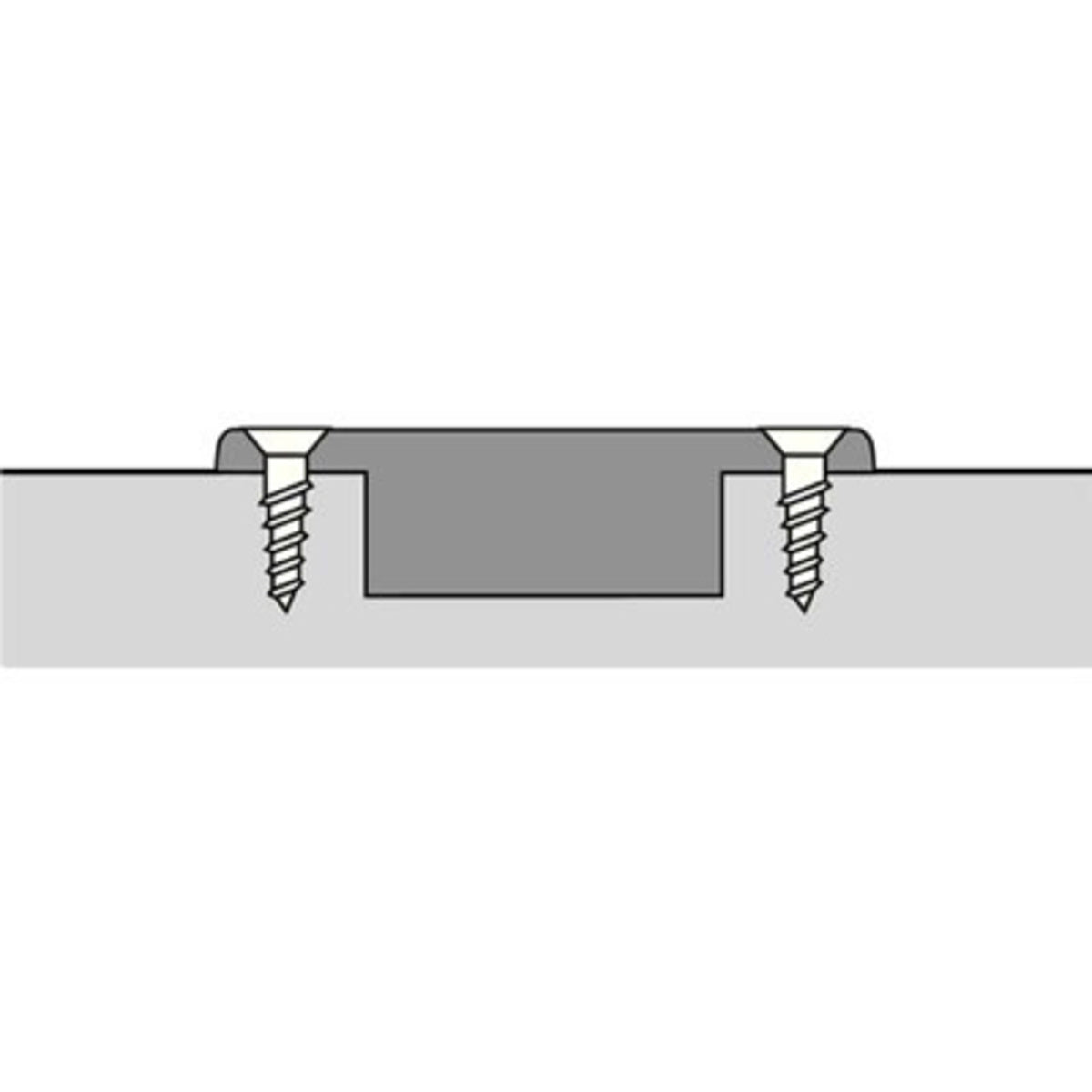

Type of installation	for screwing on
Hinge surface finish	steel nickel plated

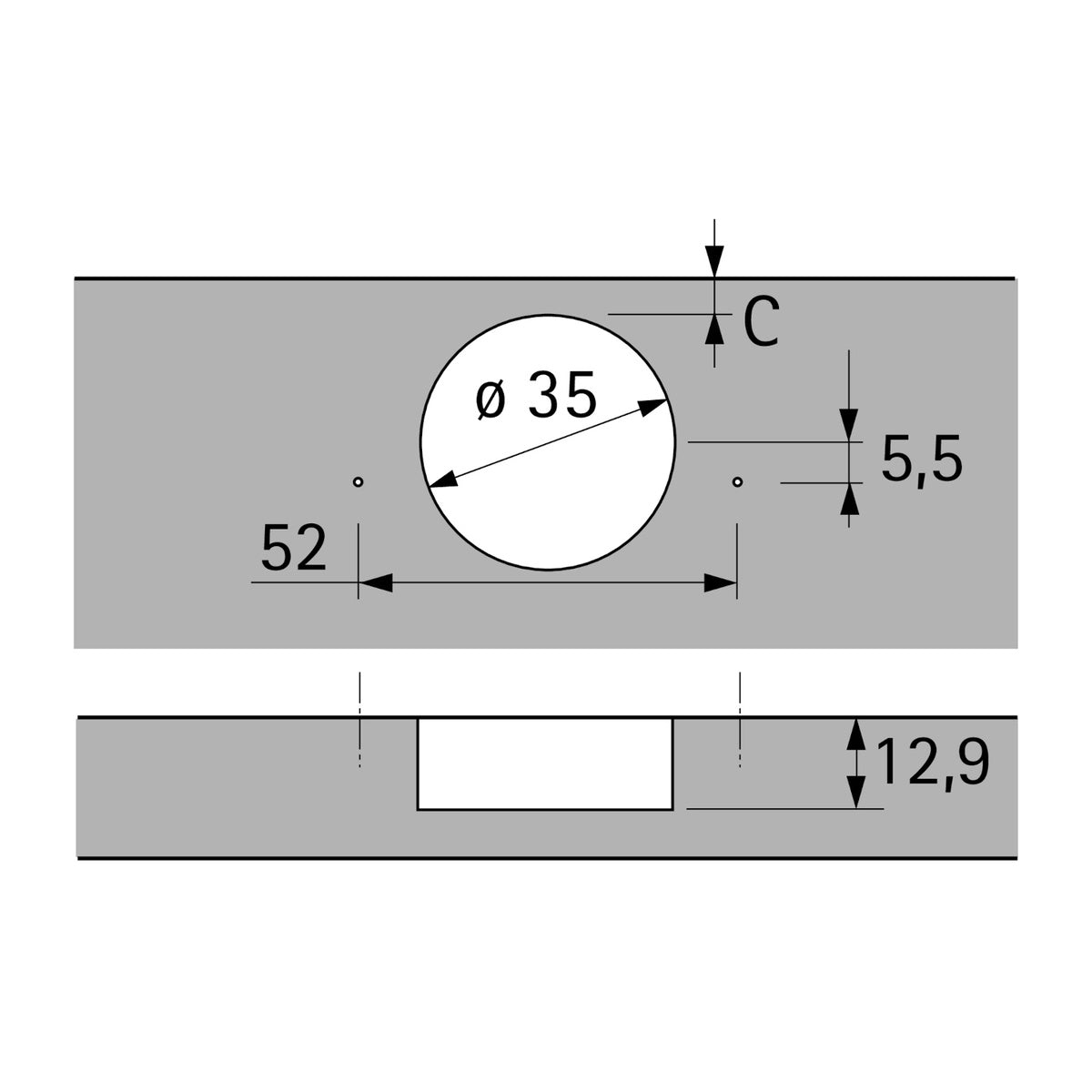

Drilling pattern	TH 52 x 5,5 mm
Diameter of mounting hole	Centre punch Predrilled hole 2.5 mm Ø max.
Integrated overlay adjustment	+2 mm / -2 mm
Integrated depth adjustment	+3 mm / -2 mm
Mounting hole	-
Stay closed function	Yes
Finish	nickel plated
EAN	4023149030901
Order no.	9071207

Cover caps must be ordered separately (check Accesories tab)
