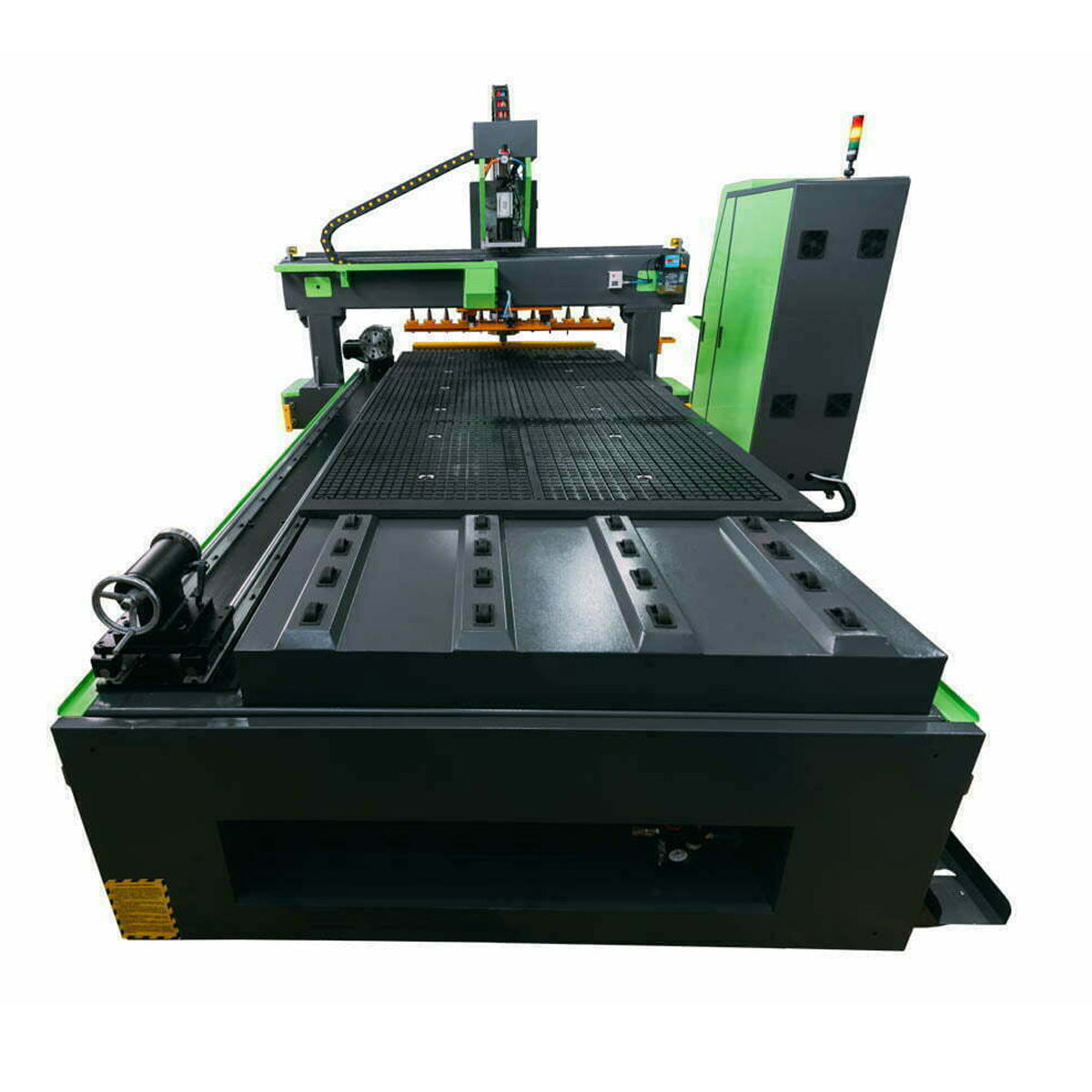

CNC router Danibrum 1325 Rotary 4×1 ATC

Improve your woodworking projects with Danibrum 1325 CNC Router with Rotary 4×1 ATC . This advanced CNC router is designed for professionals looking for precision, efficiency and versatility in their operations. Automatic linear tool changer magazine with 12 positions.

The machine is available to see while working at our premises (R32 C623).

Key features

• Spacious work surface: With a generous 1300mm x 2500m   work surface   and a height capacity of  200mm , this router can accommodate a wide variety of materials including wood, MDF and particle board.
• Powerful performance: The 9 kW  motor   ensures cutting and finishing at high speed, delivering exceptional results for every project.
• Automatic Tool Changer (ATC):  The integrated ATC system improves productivity by enabling quick tool changes, reducing downtime during operations.
• 4-Axis Functionality:  The rotary axis function enables complex machining of cylindrical objects, expanding the range of projects you can make.
• High precision:  Equipped with  HIWIN linear guides  and a ball screw drive system, this router achieves a positioning accuracy of up to  0.01mm , ensuring detailed crafts.

BENEFITS

• User-friendly control system:  Operate the machine effortlessly with the NC Studio controller and a 17-inch desktop monitor, compatible with advanced software such as Type3 and Mastercam.
• Robust construction: Built from a solid steel frame, it offers stability and durability, ensuring long-term performance even under heavy use.
• Efficient Lubrication System:  Automated centralized lubrication system extends component life while maintaining optimal performance.

Industrial efficiency with the Danibrum 1325 Rotary 4×1 ATC CNC router

The Danibrum 1325 Rotary 4×1 ATC CNC router is a top industrial equipment for processing wood, chipboard, MDF and other materials. With a powerful 9 kW motor , this router offers superior quality finishes, ensuring excellent results every time. Equipped with a timed automatic lubrication system and rack and pinion drive shafts, the CNC router guarantees an extended service life and outstanding precision in machining parts. The robust design and mechanical clamping system ensure stability and safety during operation.

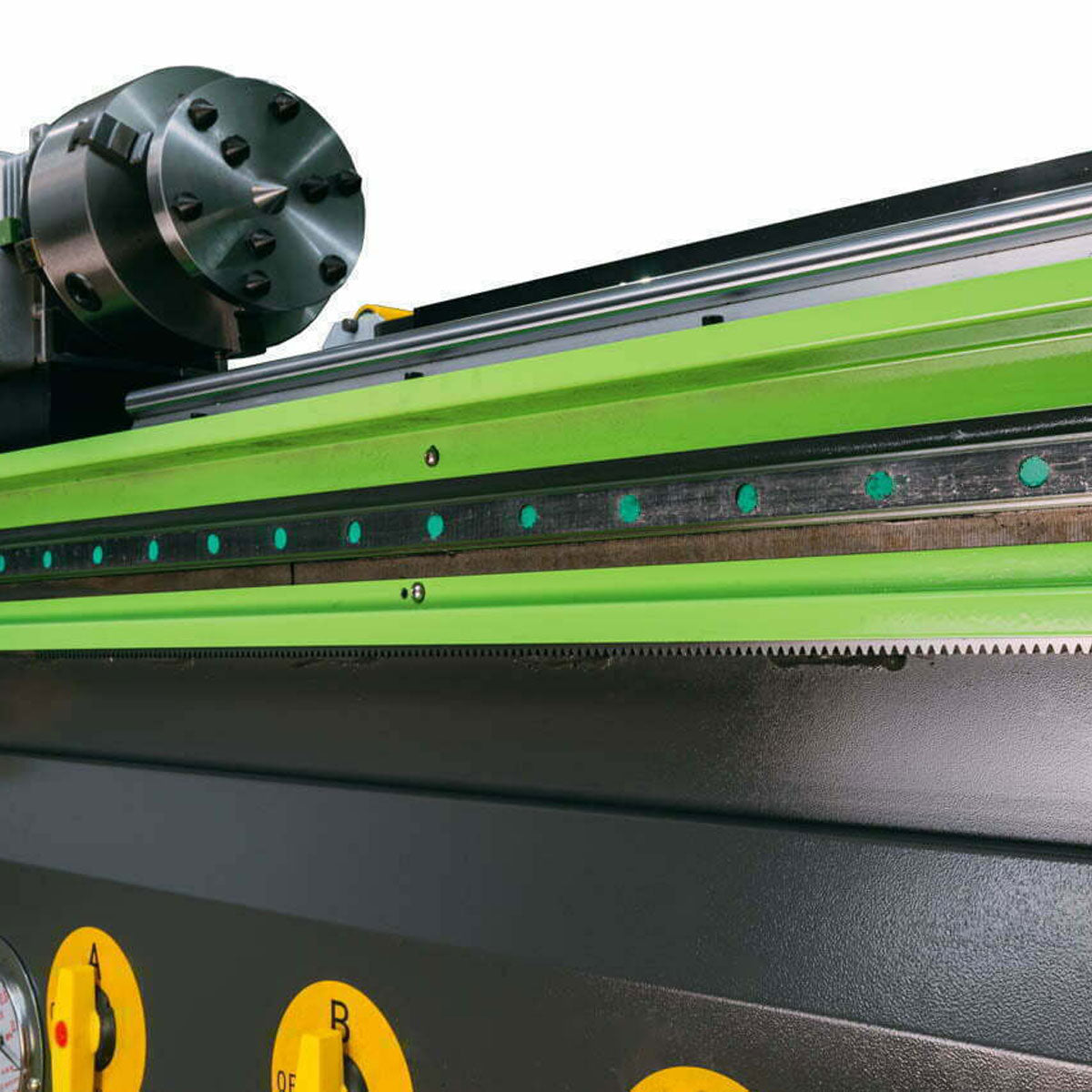

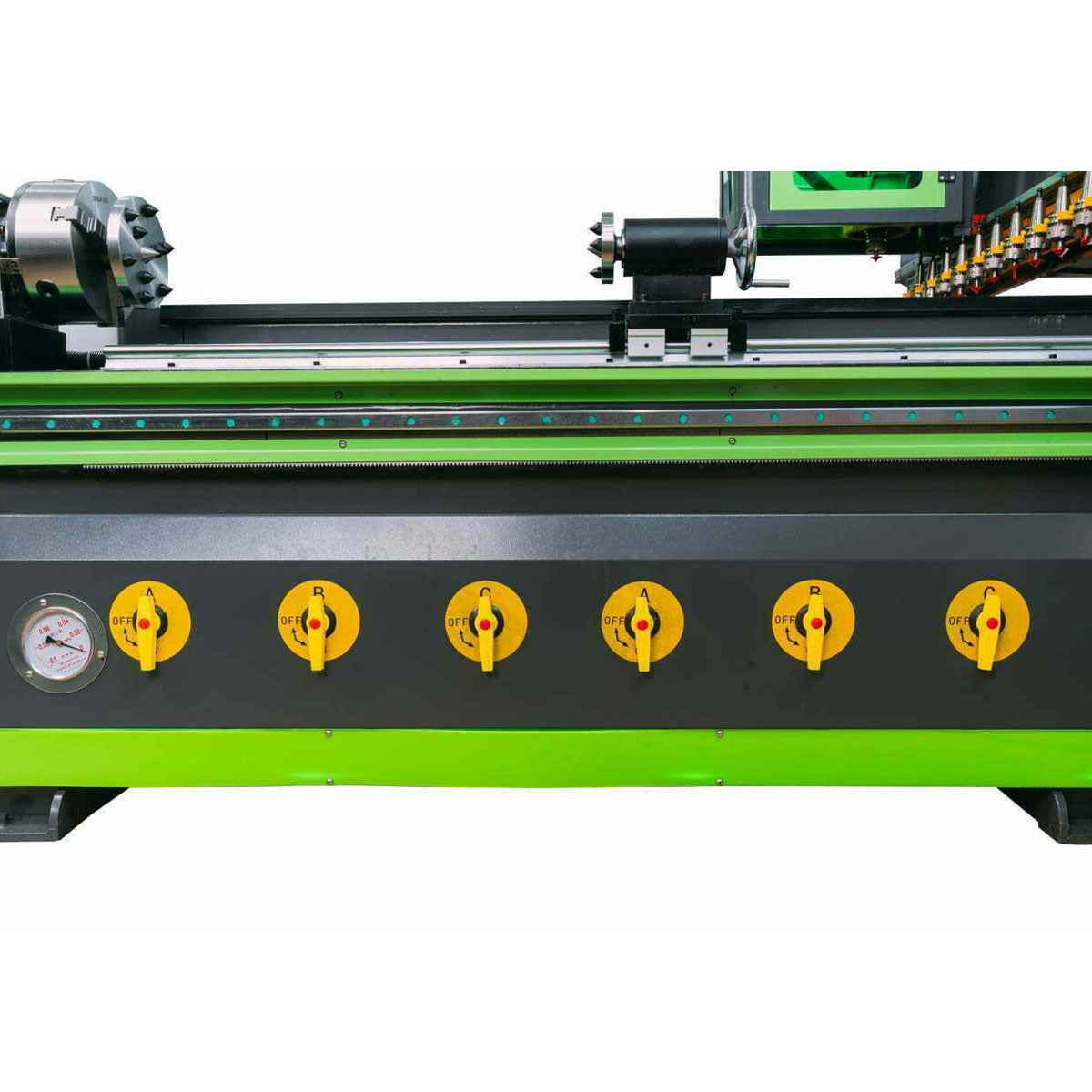

Advanced 4×1 Rotary processing technology

With the rotary unit mounted parallel to the Y axis, the Danibrum CNC router enables complex machining on long parts, offering maximum flexibility and efficiency. Precise linear guides and robust structure contribute to increased stability, ensuring high-quality machining. The integrated control system allows adjustment of work speed and real-time monitoring of operations for full control over the machining process.

The rotary unit mounted parallel to the Y-axis (perpendicular to the machine gantry), allows to maximize the machining along the length of the part. Embedded in the chassis of the CNC router, it allows complex machining, due to the increased degree of stability and the speed of changing operations between 3-axis machining and rotary machining.

• Precise linear guides for the fixed doll;
• Robust structure;
• The unit will be controlled by means of the control unit already existing on the CNC;
• Material clamping chuck with 3 jaws, including reversible jaws for internal and external clamping.
• Adjustable working length.
• Inductive sensor included, for calibration.
• Morse Fixed Doll (MT) 2;
• Gearbox transmission.

Advantages:

• The adjustable rotation speed of the milling spindle improves the efficiency and quality of machining and extends the life of the tools.
• Compatible with a wide range of advanced software such as Type3 / Artcam / CAXA / UG / Mastercam / Ucancam and more.
• Durable steel structure.
• HIWIN high precision slide rails.
• Command and control unit with NC STUDIO, desktop computer with 17 inch monitor.

Standard configuration:

• Rack and pinion transmission on the X and Y axes;
• HIWIN high precision slide rails;
• Hybrid work table with vacuum and T guides;
• Frequency converter controlled motor with air cooling system;
• Automatic tool measuring system;
• Vacuum pump with dry suction;
• Accessory;

Software performance and compatibility

With compatibility for advanced software such as Type3, Artcam, Mastercam and more, the Danibrum CNC router offers flexibility in customizing machining projects. XINJE servo motors ensure an accuracy of 0.01mm, while the powerful electrospindle provides cuts at over 18m/min. This router is the perfect solution for mass production and industrial-scale machining, being equipped to meet the demands of the most demanding projects.

Industrial sliding system with recirculating ball bearings

• 25mm wide, HIWIN;
• The advantages of such a system are multiple, including: · high positioning accuracy; · the ability to take on tasks equally in all four directions, being therefore able to work in any position;

  • obtaining high working speeds in also high loads with low actuation forces;
  • long service life, during which it retains its high-precision parameters;
  • easy installation;
  • centralized automatic-timed lubrication;

CENTRALIZED automatic-timed greasing device

• For moving parts;
• Equipment that allows the automatic lubrication of parts, with minimal effort and high efficiency;
• The pump is easily accessible, being positioned on the mobile portal.

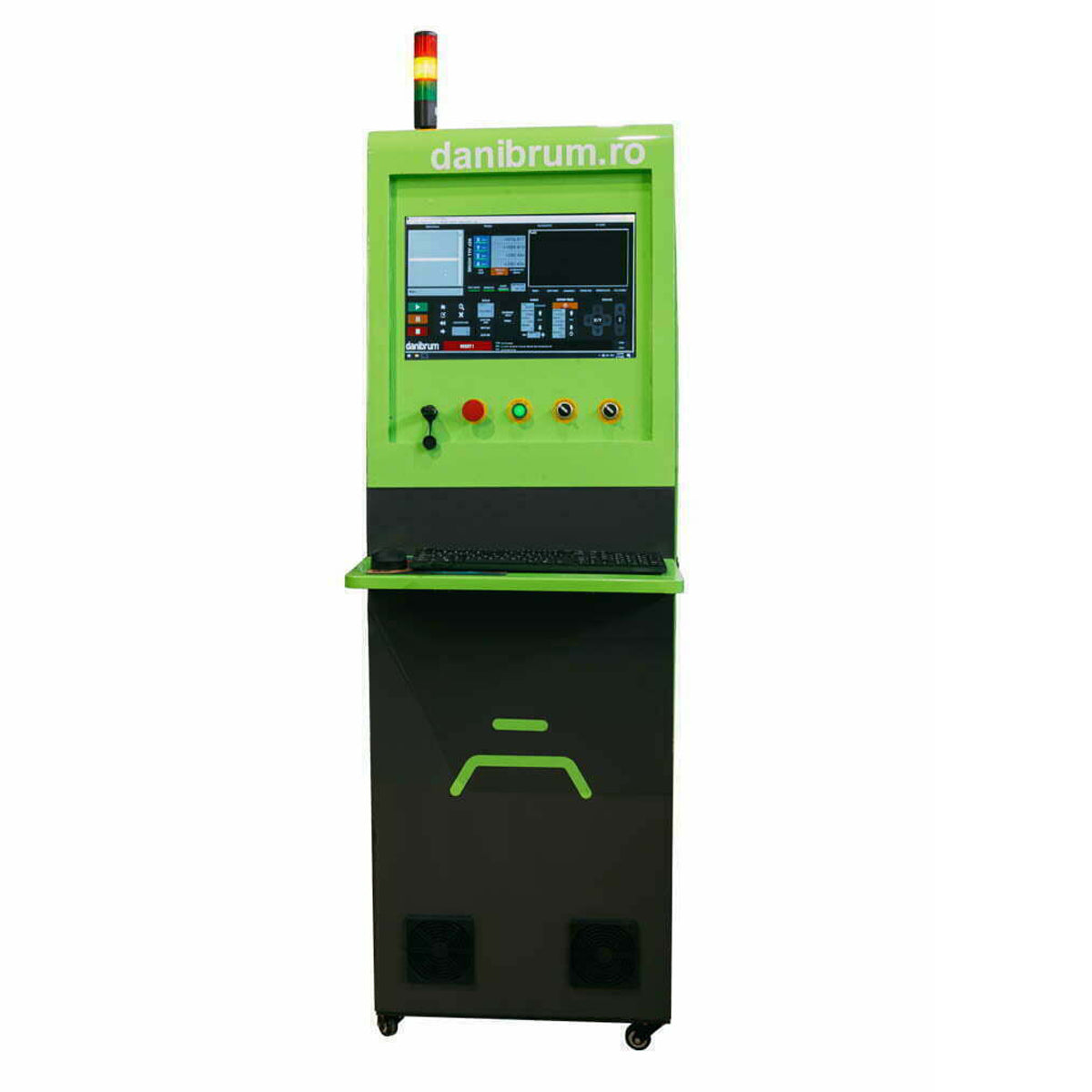

NC Studio industrial software

• The standard package includes the NC STUDIO industrial software, which allows:

  • Adjustment of working speed during operation, from 10% to 260%;
  • Adjusting the speed of the milling motor during operation;
  • Using G-Code instructions in MDI mode;
  • Diagnostics to check the states of inputs and outputs;
  • It is one of the easiest software to use, with a wide range of free educational materials available online.

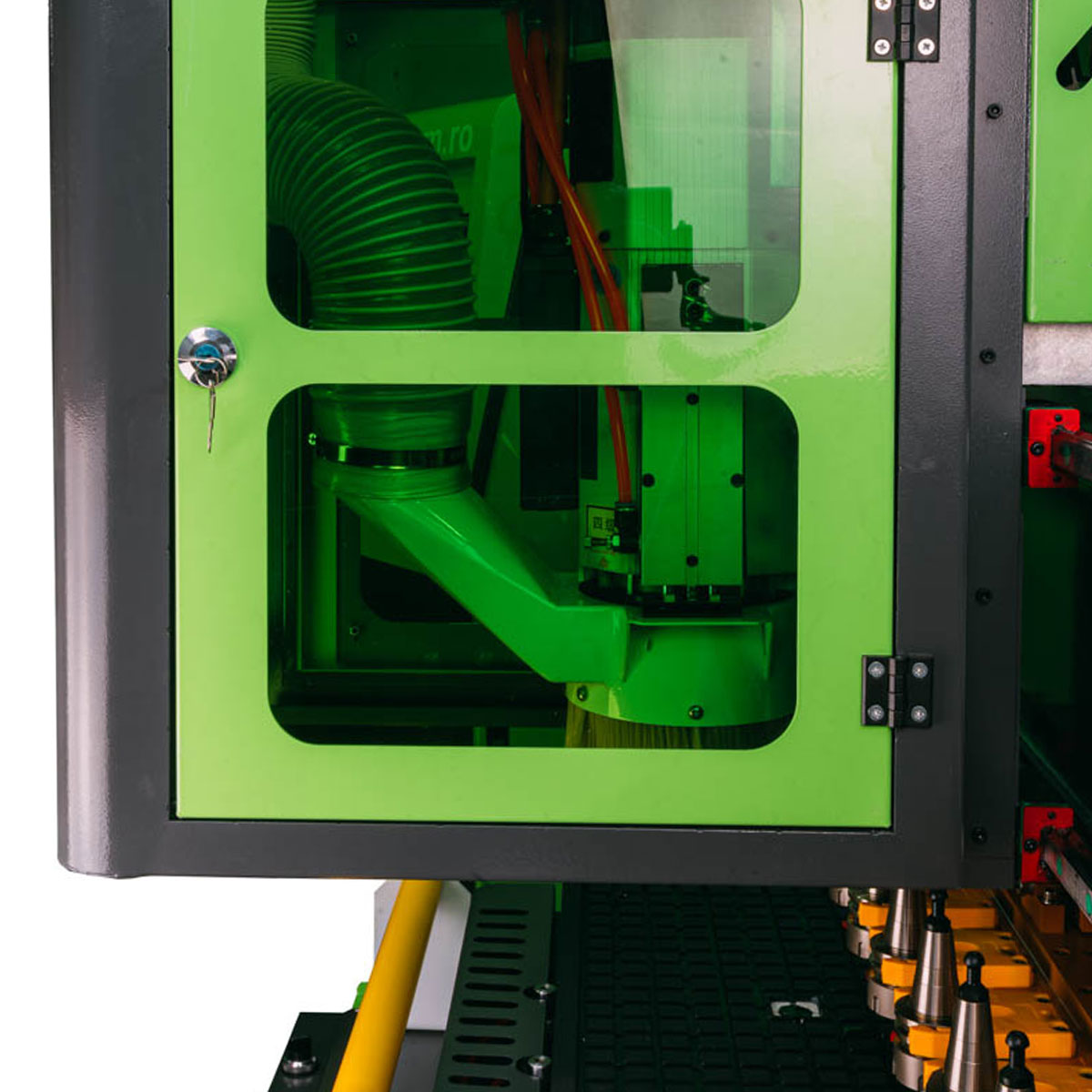

Electrospindle

• With low vibration and smooth arm movement for precise finishing;
• Powerful electrospindle (cutting at over 18m/min);
• The motor transmission is carried out by the belt.

Linear tool magazine

• With 12 positions, mounted on the CNC router gantry;
• Depending on the material processed, different cutters can be installed in the ER32 type chuck;
• The tools necessary to mount/dismount the cutters are included in the standard package.

Chucks with automatic locking/unlocking, type ISO30

• Made of nickel-plated steel, the chucks are balanced for speeds up to 30,000 rpm;
• Tool measuring device embedded in the router bit.

Tool magazine drive

• It is made pneumatically, the entire assembly sliding on high-quality linear guides, HIWIN brand. The advantages of this tool change system are found both in considerably reduced execution times and in increased wear resistance of multiple sliding systems, the results being qualitative, faster and more cost-effective.

Ball Screw Z-Axis Drive System, 2505

• What supports the weight of the Z-axis assembly with great ease.

Table made of polyamide

• Very resistant to wear and impact, with good friction properties;
• The advantages of this type of work table are:

  • they have low internal tensions;
  • vibration damping properties;
  • high tear resistance;
  • moisture absorption improves impact resistance and crack resistance;
  • chemically resistant against acids and alkalis.

XINJE actuators

• • Increased accuracy of 0.01 mm.
  • Constant torque regardless of the working speed.
  • Encoder with a resolution of 2500 pulses per rotation;
  • 20 information alarms;
  • Protections against overcurrent, overload, voltage drops, etc.

3 x Reference limiters

• With double piston for forming the settlement bond, made of aluminum, on the X-axis 3 x reference stops with piston for forming the settlement bond, on the Y-axis

Safety damper

• Accessible access from any angle, thanks to safety damper technology;
• Position ergonomically, in such a way that the operator has enough space to carry out the activity.

Free rubber rollers

• Mounted in the upper part of the machine, they offer the advantage of easy and safe loading of the materials to be processed;
• At the same time, due to the rubber texture, the rollers protect the melamine surfaces from possible scratches produced during handling.

Manual wireless pulse generator

• Multi-functional for manual zero point setting + other important operations required while using the CNC.

Mobile portal

• It is supported on both sides of the bat, the movement along the Y axis being ensured by the actuation of two XINJE servomotors;
• Robust construction, correctly balanced, which guarantees operation without torsion and vibrations;
• The wide opening of the gantry allows an X-axis working surface of 1300mm.

Independent actuators

• The engine compartment as well as the portal are operated by independent servomotors, the transmission being carried out by means of a rack with angled teeth, which ensures increased precision, regardless of the movement speed of the assemblies.
• The reducer that operates the engine compartment ensures a strong, constant torque, minimizing the risk of jamming in the material.
