Hettich Pot-and-pan Drawer set InnoTech Atira, Quadro, anthracite, left and right

Hettich Pot-and-pan Drawer set InnoTech Atira, Quadro V6, 520 / 144 mm, anthracite, left and right

€42,00

Hettich Pot-and-pan Drawer set InnoTech Atira, Quadro V6, 520 / 144 mm, anthracite, left and right

€42,00
Hettich Pot-and-pan Drawer set InnoTech Atira, Quadro, anthracite, left and right Hettich Pot-and-pan Drawer set InnoTech Atira, Quadro V6, anthracite, left and right Hettich Pot-and-pan Drawer set InnoTech Atira, Quadro V6, anthracite, left and right Hettich Drawer set InnoTech Atira, Quadro V6, anthracite, left and right
Hettich Pot-and-pan Drawer set InnoTech Atira, Quadro, anthracite, left and right
Hettich Pot-and-pan Drawer set InnoTech Atira, Quadro V6, anthracite, left and right
Hettich Pot-and-pan Drawer set InnoTech Atira, Quadro V6, anthracite, left and right

Hettich Pot-and-pan Drawer set InnoTech Atira, Quadro V6, 520 / 144 mm, anthracite, left and right

€42,00
0 LEFT IN STOCK

Products will be delivered between 1 and 3.
Product description

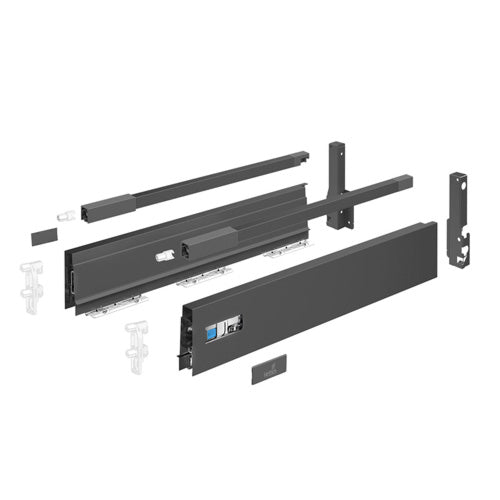

Set comprises:

  • 1 drawer side profile, left and right
  • 2 drawer front connectors for drawer side profile
  • 2 plastic cover caps, plastic with Hettich logo
  • 1 lengthwise railing, left and right
  • 2 front connectors for lengthwise railing
  • 1 rear panel connector, left and right
  • 1 Quadro V6 EB 10.5 mm drawer runner with Silent System, left and right, full extension
  • Fixing material

Hettich Drawer set InnoTech Atira :

System colour anthracite
System height 144
Nominal length 520 mm
Cabinet body width 200 mm - 1200 mm
Drawer type double walled \ knocked down \ without drawer runner
Variants All-inclusive sets
Mounting side left and right
Material steel
EAN 4023149294877
Previous order no. 9196285
Order no. 9307214

  Quadro V6 Silent System, 520 mm, EB 10.5 mm, load capacity 30 kg, left and right :

Load capacity kg 30 kg
Installed width EB 10.5
Hole spacing b1 256 mm

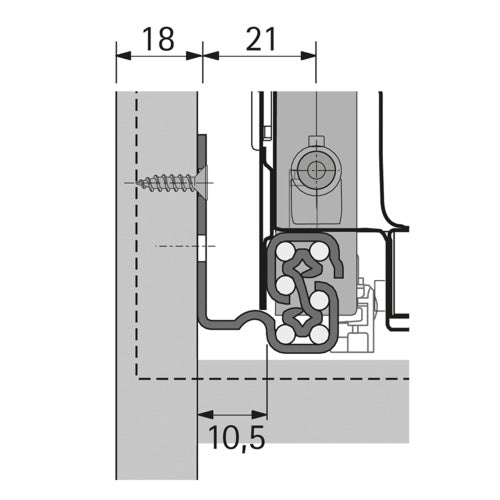

Installed width / cabinet body side thickness EB 10.5 (cabinet body side thickness 18 mm)
Nominal length 520 mm
Mounting side left and right
Load class 30 kg
Type of runner Concealed runner
Type of drawer runner Full extension runner
User friendly features Push to open Silent
Components Drawer runners
Variants Components
Material steel
EAN 4023149721069
Order no. 9243706
